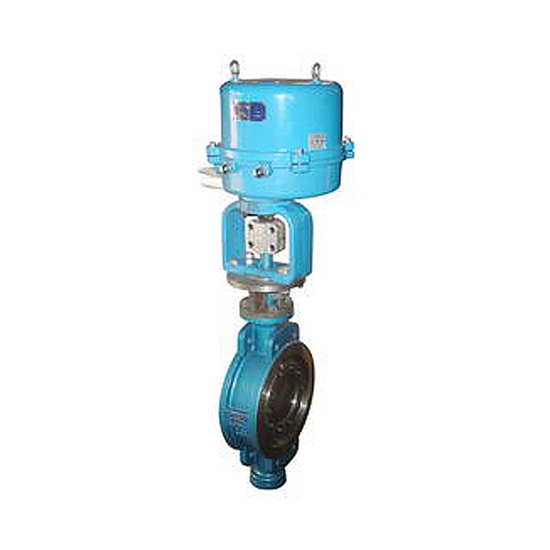

ZDRW electric control valve

關(guān)注次數(shù)：

Summary
Electric high performance control, cut off valve is long life, energy saving type butterfly valve multi-level seal. The structure of the principle of three-dimensional design, seat with hierarchical structure, soft and hard sealing compatible processing skills, advanced technology. This product is composed of a valve body, a butterfly plate, valve seat, stem, multi-level transmission mechanism and other main components. So it is widely used in metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas pipelines and water supply and drainage and other corrosive medium..
Characteristic
This series of butterfly valve uses is the design principle of three-dimensional eccentric, make the space motion of the sealing surface of the ideal, no friction between the sealing surface, no interference, and sealing materials are selected properly, so that the valve sealing performance, corrosion resistance, high temperature resistance and wear resistance has been a reliable guarantee. Its main features are as follows:
1, the opening torque is small, flexible and convenient, labor-saving and energy-saving.
2, three-dimensional woven structure, make the disc more closed more tightly, and the sealing performance is reliable, can achieve no leakage.
3, high pressure resistance, corrosion resistance, abrasion resistance, long service life etc..

Manufacturing using standard

Design standard	GB/T12238-1989、JB/T8527-1997、GB/T4213-2008
Flange connection size	JB/T79.1(2)-94、GB/T9113.1(2)-2000
The length of the structure	GB/T12221-2005
Pressure test	GB/T13927-1992;JB/T9092-1999

Main technical parameters

Nominal diameter（DN）	50	65	80	100		125	150	200	250	300	350	400	450	500	600	700	800
The flow coefficient (CV)	95	175	270	375		740	1400	2100	3250	4680	6200	8100	11000	15800	21000	29000	38000
The maximum angle(α°)					90°
Working voltage					220VAC、380VAC
Operating temperature range℃					-40~250
Input signal					4~20mADC、220VAC、24VDC
Nominal pressure （MPa）					1.6、4.0、6.4
Connection form and standard					On the clip, flange type
The valve body material					ZG25、304、316、316L
The valve core material					304、316、316L
The seat material					304、316、F4
Flow characteristics					Approximate equal percentage
The leakage class					V、VI

Actuator
3610R series electric actuator, is a single-phase AC220 power supply AC as the driving power, received from the DCS, PLC system or adjust the instrument operator DC4~20mA, DC0~10mA or DC1~5V control signal of the electronic actuator, the actuator has the function of switching function and the action of opening signal function and manual etc.. Large diameter butterfly valve generally use the 380VAC electric actuator, domestic brands such as Shanghai autork, Yangzhou electric power, Tianjin two; foreign brands have a UK, France, Germany, Bernard Siboth (Siemens) etc..

Dimensions and weight

Company：mm

Nominal diameter	The length of the structureL		Size and shape		Connecting dimensions PN1.6MPa			The reference weight
DN	On the clip	On the clip	H	H	D	D1	Z-d	（kg）
50	108	43	112	530	165	125	4-18	19
65	112	46	115	530	185	145	4-18	22
80	114	49	120	565	200	160	8-18	25
100	127	56	138	600	220	180	8-18	28
125	140	64	164	640	250	210	8-18	43
150	140	70	185	705	285	240	8-22	50
200	152	71	200	775	340	295	12-22	64
250	165	76	243	945	405	355	12-26	99
300	178	83	250	1070	160	410	12-26	130
350	190	92	280	1140	520	470	16-26	188
400	216	102	305	1210	580	525	16-30	270
450	222	114	350	1335	640	585	20-30	350
500	229	127	380	1415	715	650	20-33	375
600	267	154	445	1605	840	770	20-36	560
700	292	165	480	1844	910	840	24-36	610
800	318	190	530	2040	1025	950	24-39	880

Ordering instructions
When ordering, please fill in "specification" or indicate the following contents:
One, if the order has not selected models, please provide the parameters are used to send us your
1, nominal diameter, the rated flow coefficient Kv
2, the fluid properties (including the nominal pressure, temperature, viscosity and pH)
3, the valve action form (electro - closed or electric - Open)
4, flow characteristics
5, in front of the valve, the valve pressure
6, valve body, valve core material
7, the input signal
8, with the attachment, the attachment type, so that we can correct for your selection.
Two, special requirements
1, special inspection
2, complete degreasing, water treatment;
3, no copper processing;
4, special interface, piping;
5, the use of vacuum conditions;
6, specify the color of the coating
7, special medium (oxygen, chlorine, hydrogen);
8, the use of stainless steel connections;
Three, if the unit has been selected from the design of our products, please according to the type of sales directly to my company Department order.
Four, the occasion is very important when using or complicated pipelines, please try to provide design drawings and detailed parameters, from our experts to your review gatekeeper.
